Segmented Dome Skylight Rendering.

Segmented Dome Skylights

Dome skylights can be used for functional or aesthetic purposes, and are by far the most stunning skylight to view on a building's exterior. In a segmented dome skylight, several lites of glass are constructed at angles to created the dome shape, as opposed to that in a radius dome skylight. Laminated glass with colored SGP interlayers can be used to add even more aesthetic appeal, making dome skylights a favorite choice of architects and designers worldwide. Dome skylights can vary in size from relatively small to quite massive, but height and overall size will be determined by both the architect's intent as well as structural engineering calculations.

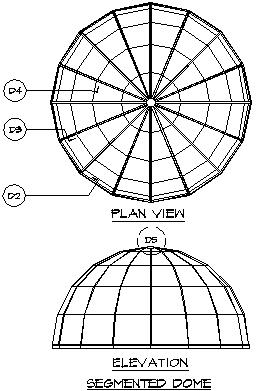

Diagrams of a segmented dome, including a plan view and an elevation view.

Segmented Dome Skylight Details

Technical diagram of skylight assembly, showing components such as aluminum snap cap, aluminum pressure cap, glazing, bolt, workpoint, EPDM glazing gasket, screw boss, inter-sky rafter, and condensation gutter.

Detail 1 Typical Rafter
DWG | DXF | PDF

Technical diagram of window or skylight installation details, including components like aluminum snap cap, silicone seal, glazing, EPDM gasket, screws, purlin clips, anchors, and flashing.

Detail 2 Sill
DWG | DXF | PDF

Detailed technical diagram of skylight flashing and securing components, including aluminum snap cap, silicone seal, glazing, EPDM gasket, inter-sky rafter and sill, weep hole, work point, anchor, sill flashing, and curb by others.

Detail 2a Sill
DWG | DXF | PDF

Technical diagram of an insulated glass unit, showing components such as aluminum snap cap, aluminum pressure cap, glazing, bolt, workpoint, EPDM glazing gasket, screw boss, inter-sky rafter, and condensation gutter.

Detail 3 Hip Rafter
DWG | DXF | PDF

Technical diagram of a skylight assembly showing components like silicone seal, backer rod, glazing, EPDM setting block, and aluminum parts.

Detail 4 Purlin, Flush Glazed
DWG | DXF | PDF

Diagram of a skylight component showing parts labeled as aluminum snap cap, aluminum pressure cap, glazing, EPDM glazing gasket, TEK screw, aluminum purlin clip, inter-sky purlin with fin, aluminum snap bottom.

Detail 4a Purlin, Capped
DWG | DXF | PDF

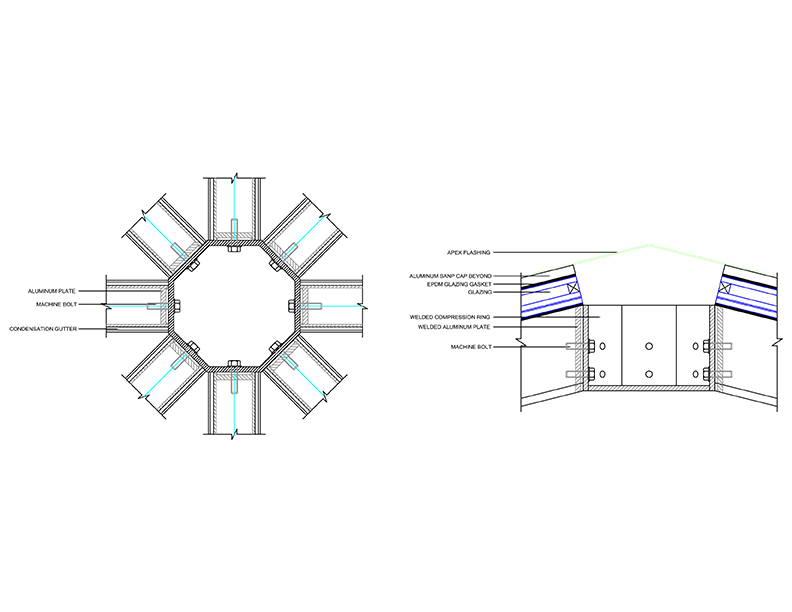

Technical drawing of a circular mechanical or architectural component with labeled parts, including aluminum plates, machine bolts, compression rings, and flashing.

Detail 5 Apex
DWG | DXF | PDF
