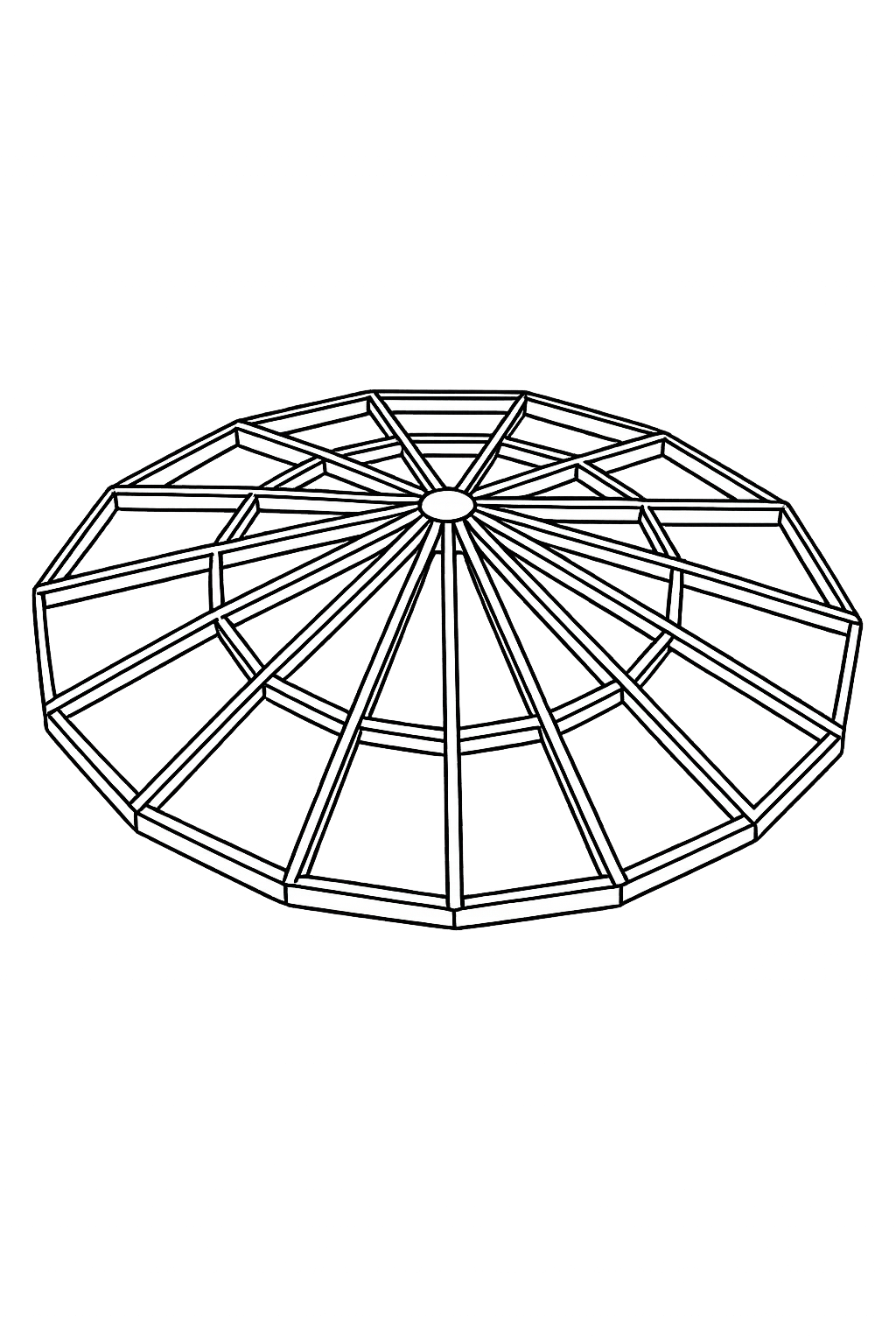

Polygon Skylight Rendering

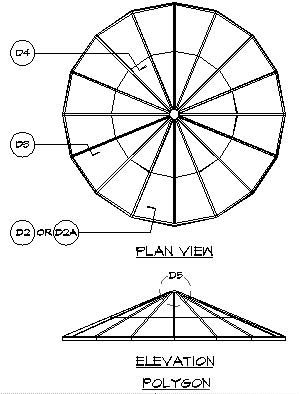

Technical drawing of a plan view and elevation of a polygon-shaped skylight, with details labeled D2, D3, D4, D5, and D2A.

Polygon skylights is a type of pyramid skylight that is constructed over five, six, eight or twelve sided openings, as well as over irregular multi-sided openings. Most commercial monumental skylights are some form of polygon skylight, as they can serve as an attractive centerpiece in libraries, universities, shopping malls, sports venues and other high-traffic public areas. Skylight pitch is normally determined by the architect's aesthetic intent, structural engineering requirements, or both.

Polygon Skylights

A technical architectural drawing showing detailed components and assembly of a skylight installation, including seals, gaskets, screws, and mounting hardware.

Polygon Skylight Details

Detail 2 Sill
DWG | DXF | PDF

Technical diagram of skylight installation, showing components like aluminum snap cap, silicone seal, glazing, EPDM gasket, inter-sky rafter and sill, anchor, and flashing details.

Detail 2a Sill
DWG | DXF | PDF

Technical diagram of a skylight assembly showing parts including aluminum snap cap, aluminum pressure cap, glazing, bolt, workpoint, EPDM glazing gasket, screw boss, inter-sky rafter, and condensation gutter.

Detail 3 Hip Rafter
DWG | DXF | PDF

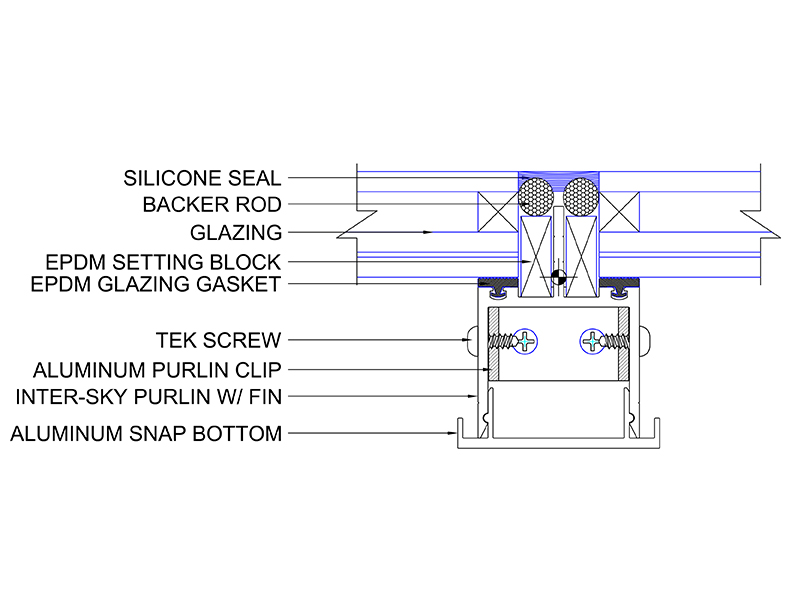

Technical drawing of a skylight assembly showing components such as silicone seal, backer rod, glazing, EPDM setting block, EPDM glazing gasket, TEK screw, aluminum purlin clip, inter-sky purlin with fin, and aluminum snap bottom.

Detail 4 Purlin, Flush Glazed
DWG | DXF | PDF

Technical drawing of a skylight assembly showing layers including aluminum snap cap, aluminum pressure cap, glazing, EPDM glazing gasket, Tek screw, aluminum purlin clip, inter-sky purlin with fin, and aluminum snap bottom.

Detail 4a Purlin, Capped
DWG | DXF | PDF

Technical drawing of a skylight apex with sectional and top views, including labels for aluminum plate, machine bolt, condensation gutter, apex flashing, gasket, and welded components.

Detail 5 Apex
DWG | DXF | PDF
