Gable Ridge Skylights

Gable ridge skylights exist in conditions where the skylight continues the same angle of the roof pitch and the apex of the skylight coincides with the roof ridge line. These types of skylights can be mounted on curbs on flat roofs with a variety of pitch options and glazed vertical ends. Additionally, gable ridge skylights can attach to vertical walls at either or both ends. Skylight pitch is normally determined by the architect's aesthetic intent, structural engineering requirements, or both.

Architectural drawing showing a plan view and elevation of a skylight with a sloped roof and side walls.

Gable Ridge Skylight Details

Technical diagram of skylight detail showing components like aluminum snap cap, aluminum pressure cap, glazing, bolt, workpoint, EPDM glazing gasket, screw boss, INTER-SKY rafter, and condensation gutter.

Detail 1 Typical Rafter
DWG | DXF | PDF

Detailed architectural or construction drawing showing a cross-section of a skylight installation with annotations and specifications.

Detail 2 Sill
DWG | DXF | PDF

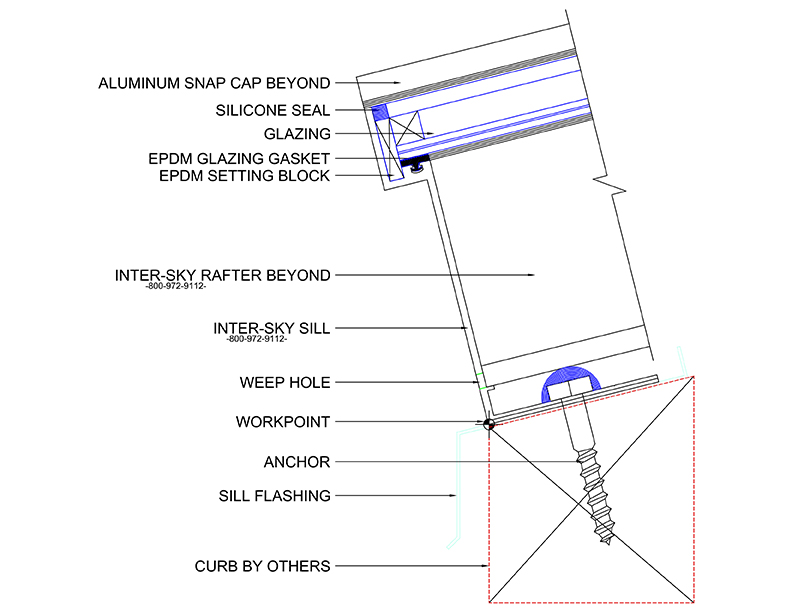

Technical drawing of a skylight frame assembly with labels for components such as aluminum snap cap, silicone seal, glazing, EPDM gasket, inter-sky rafter, inter-sky sill, weep hole, workpoint, anchor, sill flashing, and curb by others.

Detail 2a Sill
DWG | DXF | PDF

Technical diagram of a skylight system with labels for silicone seal, backer rod, glazing, EPDM setting block, EPDM glazing gasket, TEK screw, aluminum purlin clip, inter-sky purlin with fin, and aluminum snap bottom.

Detail 4 Purlin, Flush Glazed
DWG | DXF | PDF

Technical drawing of a skylight assembly, including components like silicone seal, backer rod, aluminum flashing closure, EPDM glazing gasket, workpoint, inter-sky purlin assembly, inter-sky rafter, and end glazing.

Detail 8 End Glazing
DWG | DXF | PDF

Detailed architectural or construction drawing showing a cross-section of a skylight installation with annotations and specifications.

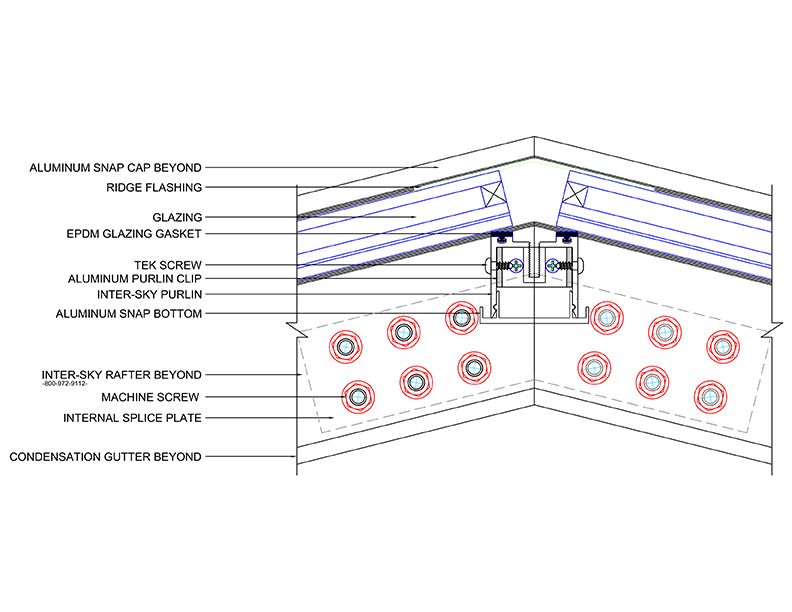

Detail 10 Ridge
DWG | DXF | PDF
