Pyramid Skylight Rendering

Pyramid skylights are generally found to be mounted on curbs on flat roofs. Available with a variety of slope or pitch options, rafter placement and glass size are determined by the geometry created by the relationships between sides and the desired slope. While the skylight is identified as a pyramid over a square opening, when built over a rectangular opening it is called a hip ridge skylight. Skylight pitch is normally determined by the architect's aesthetic intent, structural engineering requirements, or both. Multi-sided pyramids skylights, better known as polygon skylights, can be constructed over six or eight sided openings, as well as over irregular multi-sided openings.

Pyramid Skylights

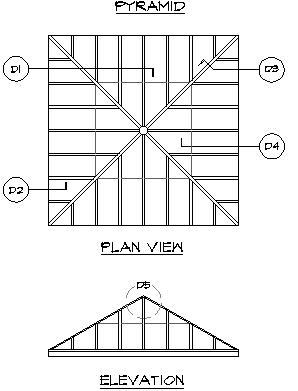

Blueprint of a pyramid skylight including a plan view and an elevation view, with labeled sections and structural details.

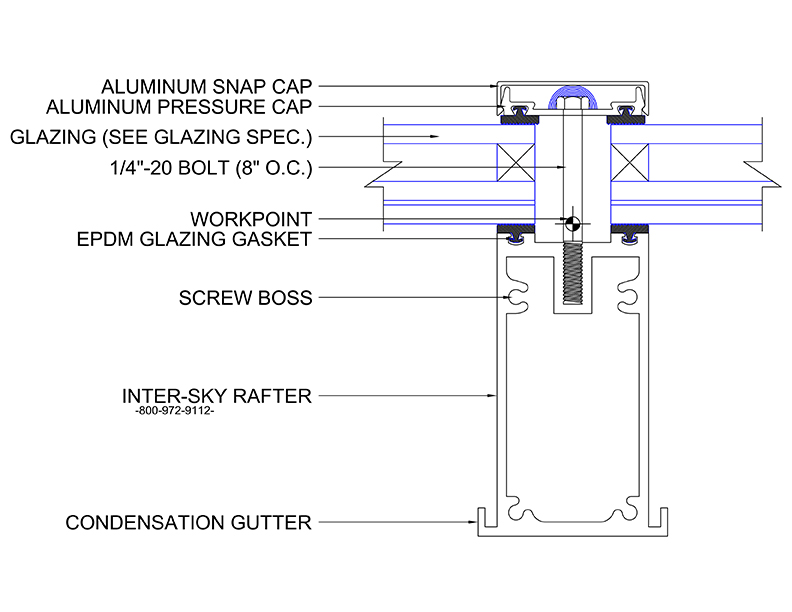

Technical drawing of skylight assembly showing parts labeled: aluminum snap cap, aluminum pressure cap, glazing, bolt, workpoint, EPDM glazing gasket, screw boss, inter-sky rafter, condensation gutter.

Pyramid Skylight Details

Detail 1 Typical Rafter
DWG | DXF | PDF

Detailed technical diagram of a skylight assembly with labeled components including aluminum snap cap, silicone seals, glazing, EPDM gasket, aluminum purlin clips, anchor, and flashing.

Detail 2 Sill
DWG | DXF | PDF

Technical drawing of a skylight assembly detailing parts like aluminum snap and pressure caps, glazing, bolts, a workpoint, glazing gasket, screw boss, inter-sky rafter, and condensation gutter.

Detail 3 Hip Rafter
DWG | DXF | PDF

Technical drawing of a skylight assembly with labeled components including silicone seal, backer rod, glazing, EPDM setting block, EPDM glazing gasket, TEK screw, aluminum purlin clip, inter-sky purlin with fin, and aluminum snap bottom.

Detail 4 Purlin, Flush Glazed
DWG | DXF | PDF

Technical engineering drawing of a skylight apex structure with multiple labeled components including aluminum plates, machine bolts, condensation gutter, and flashing, with a side view showing cross-sectional details of the assembly.

Detail 5 Apex
DWG | DXF | PDF
