Radius Dome Skylight rendering

Radius Dome Skylights

Dome skylights can be used for functional or aesthetic purposes, and are by far the most stunning skylight to view on a building's exterior. In a radius dome skylight, the glass is a true curved radius, as opposed to that in a segmented dome skylight. Laminated glass with colored SGP interlayers can be used to add even more aesthetic appeal, making dome skylights a favorite choice of architects and designers worldwide. Dome skylights can vary in size from relatively small to quite massive, but height and overall size will be determined by both the architect's intent as well as structural engineering calculations. Polycarbonate glazing can be used as a value engineered option.

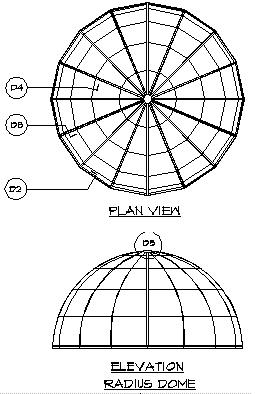

Technical drawing of a radius dome skylight, showing plan view with radial divisions and elevation view of the dome's radius.

Radius Dome Skylight Details

Detail of a construction drawing showing components of a skylight installation, including aluminum snap cap, silicone seal, glazing, EPDM gasket, screw, purlins, and flashing, with annotations and labels.

Detail 2 Sill
DWG | DXF | PDF

Technical diagram of a skylight installation showing parts like aluminum snap cap, silicone seal, glazing, EPDM gasket, and setting block, with annotations for anchoring and flashing.

Detail 2a Sill
DWG | DXF | PDF

Technical diagram of a skylight assembly showing components such as aluminum snap cap, aluminum pressure cap, glazing, 1/4-inch to 20 bolt, workpoint, EPDM glazing gasket, screw boss, inter-sky rafter, and condensation gutter.

Detail 3 Hip Rafter
DWG | DXF | PDF

Technical diagram of skylight components, including silicone seal, backer rod, glazing, EPDM setting block, EPDM glazing gasket, TEK screw, aluminum purlin clip, inter-sky purlin with fin, and aluminum snap bottom.

Detail 4 Purlin, Flush Glazed
DWG | DXF | PDF

Technical diagram of skylight assembly with labeled components including an aluminum snap cap, aluminum pressure cap, glazing, EPDM glazing gasket, TEK screw, aluminum purlin clip, inter-sky purlin with fin, and aluminum snap bottom.

Detail 4a Purlin, Capped
DWG | DXF | PDF

Detailed technical drawing of a skylight apex, showing a circular assembly with multiple parts labeled including aluminum plates, machine bolts, and sealing elements.

Detail 5 Apex
DWG | DXF | PDF
