Detail 1: Rafter

Technical drawing of a skylight assembly with labeled parts including aluminum snap cap, aluminum pressure cap, glazing, bolt, workpoint, EPDM glazing gasket, screw boss, inter-sky rafter, and condensation gutter.

Polygon Skylights

A Polygon skylight is a type of pyramid skylight that is constructed over five-, six-, eight-, or twelve-sided openings, as well as over irregular multi-sided openings. Most commercial monumental skylights are some form of polygon skylight, as they can serve as an attractive centerpiece in libraries, universities, shopping malls, sports venues, and other high-traffic public areas. Skylight pitch is normally determined by the architect's aesthetic intent, structural engineering requirements, or both.

Polygon Skylight Details

Circle plan view with numbered sections and labels D2, D3, D4, D5; top elevation view of polygon skylight.

Click to view specific details and view files for download

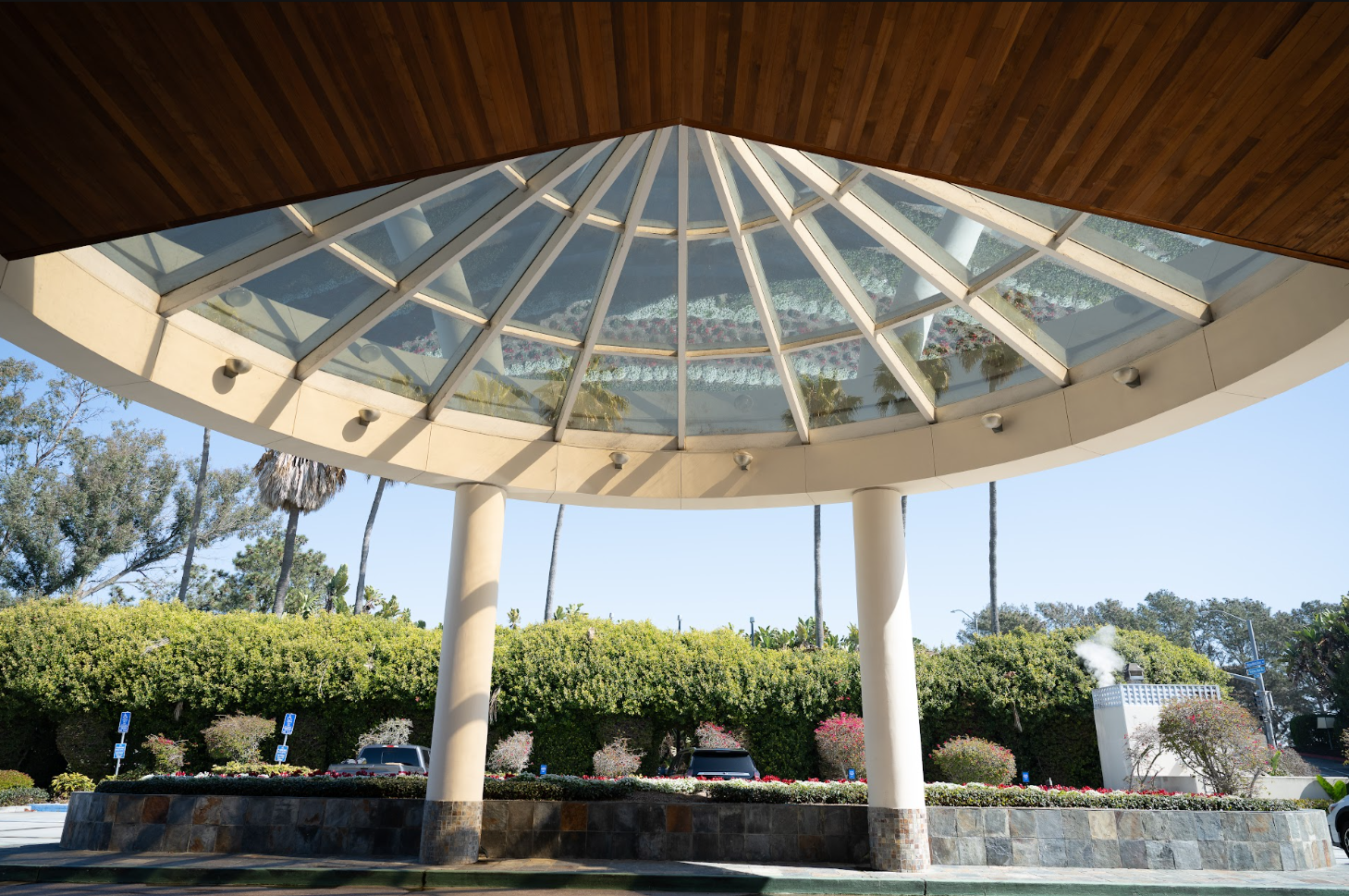

A Large Partial Polygon Skylight Canopy at the entrance of a hotel
a twelve-sided polygon skylight on a title roof of a home
